Flow Pack Machine
- Home
- Packing Machine
- Horizontal Form FIll Seal Machine
- Flow Pack Machine
Feature
- Adopt Siemens PLC control system
- Robust stainless steel frame and parts
- Auto Bag Length Detection
- High speed:50-600 bags/min
- Full servo motor
- Easy to control sealing temperature
- Fill measure accurately 99.99%
- Convenient adjustment and full automation.
- OEM&ODM is avaliable
- Super maintence&On time delivery
- Competitive price and reliable quality
Video Gallery
Hffs Packaging Machine Video
Flow pack machine is ideal for consumer goods and food products, providing a secure back seal and high-speed packaging, perfect for businesses looking to improve operational efficiency. The product is placed on the packaging film, which is then formed and sealed horizontally around the product. This type of machine is aimed at food and non-food markets. Including energy bars, sponges, ice cream on a stick, cleaning wipes, pastries, desserts, napkins, pre-wrapped plastic cutlery, flea collars, coffee filters, etc.
Summary
2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3. Automatic checking system can check bag situation, filling and sealing situation. The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4. The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
Working Process
During the horizontal wrapping process, the product is placed onto the machine’s flat chain conveyor where it travels to the sealing head. A heat-sealable film is then wrapped around the product, sealed, and cut. These processes are automatically completed by the same machine, and the result is a neatly fitted pillow pack with a strong and consistent seal.

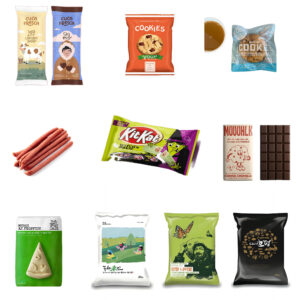

Sample Bag
Attention: If the bag sizes fall outside of the specified range, we will offer customization options to fulfil any unique size requests.
FAQ
Q1: What types of horizontal form fill seal machines does your company provide?
A: We offer a variety of Hffs machines. Based on your product type, packaging requirements, and production capacity, we can provide suitable model options. Please browse our product catalog for information on the features and specifications of each model.
Q2: Can your flow pack machines accommodate different bag types and sizes?
A: Yes, our hffs packing machines can accommodate various bag types and sizes. The flow pack machine are equipped with flexible adjustment capabilities to accommodate back seal pouches .We can provide bag type adjustments and customization services based on your specific requirements.
Q3: How automated are your flow pack machines?
A: Our flow pack machines are highly automated. They are equipped with advanced control systems and sensors to automate bag filling, measuring, sealing, and coding processes. Through precise and reliable automation technology, our machines enhance production efficiency and packaging quality.
Q4: Can you provide technical support if I encounter issues while using the horizontal flow pack machine?
A: Absolutely! We provide comprehensive technical support. Whether it’s during the installation and debugging stage or while using the machine, our technical team is available to provide support and training. We offer remote support through phone or video conferences to address your queries and concerns, ensuring the smooth operation of your packaging machine.
Q5: Do your packaging machines come with a warranty? How long is the warranty period?
A: Yes, our packaging machines come with a 1-year warranty. We provide a specified warranty
Production Capacity | 30-140(one cutting knife) | 80-290(double) | 80-290(three) | ||||
Packing shape | Square, rectangle, circular, ellipse and flake etc. | ||||||
Working Hour (suggestion) | less than 12 hours per day. | ||||||
Packing material | ET+OPP, BOPP, CPP, PET+AL, and other one layer or double layer heated complex film. | ||||||
Applicable Range | The machine is suitable to pack slice biscuit, chocolate, ice cream, card, bread and commodities, and other similar product. cast Iron and normal PC controller | ||||||
Packing range | The length of the bags | 170-400mm | 80-300mm | 60-100mm | |||
Width (mm) | 35-100mm | ||||||
Height (mm) | 20-80mm | 3-40mm | 2-30mm | ||||
Max. Width of film | 300mm | ||||||
Max. Dia of film | Ф350mm | ||||||
Gross power | 3kw | ||||||
Power supply | 220v 50-60HZ | ||||||
Gross weight | 900kg | ||||||
Overall diamensions(mm) | 4200*850*1550 | ||||||
Thickness of the film | 0.045-0.06mm |
